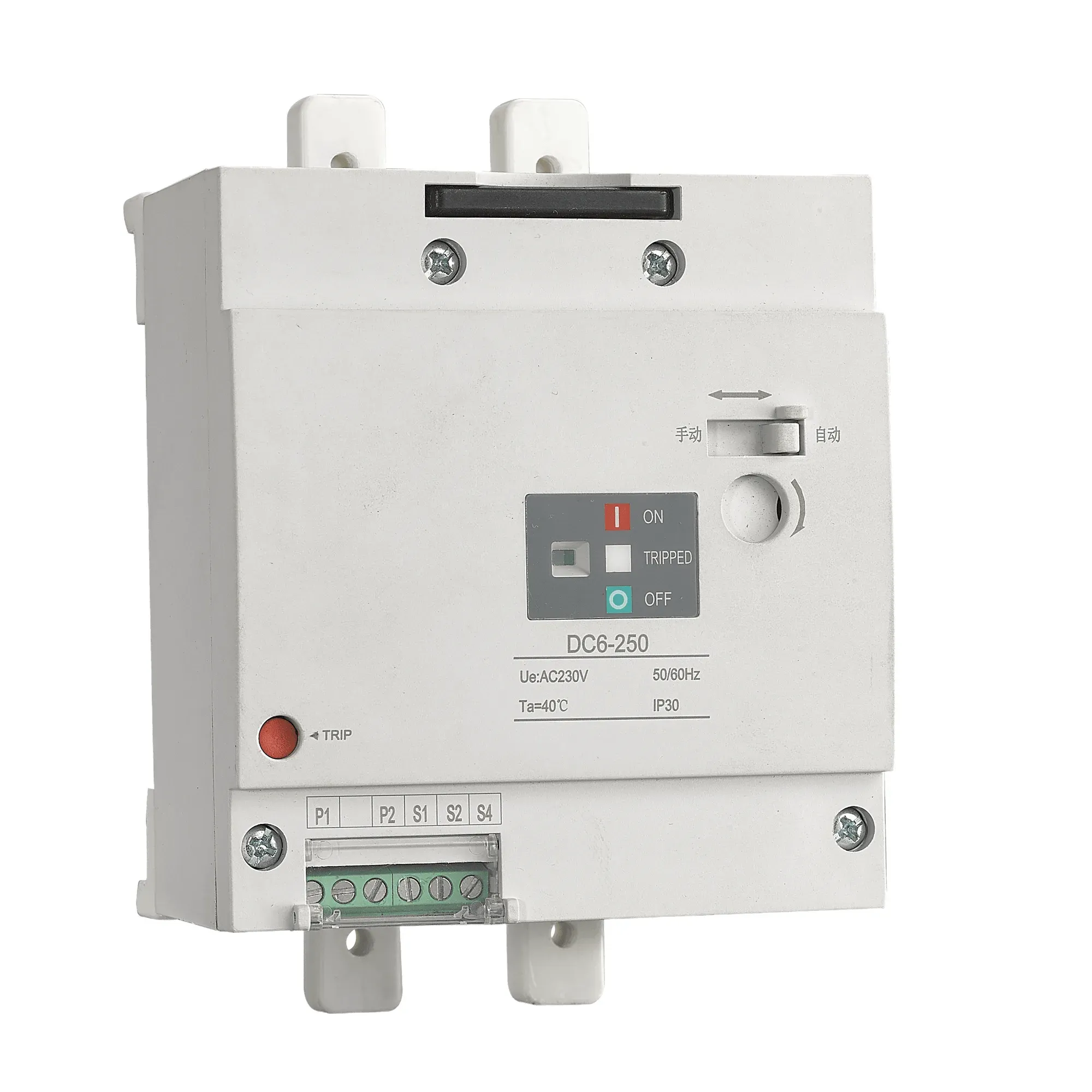

DC6 Series Remote IoT Operation Module
DC6 remote IoT operation module for 125A to 2000A breaker frames, supporting DC24V, AC230V and AC400V control with RS485 communication and remote operation.
Order Support
- Typical production lead time: 20 working days
- Free samples — send us your express shipping account
- Technical documents checked for the requested model
- Pre-shipment inspection options can be agreed before ordering
- OEM and private-label requirements are reviewed case by case
DC6 remote IoT operation module for 125A to 2000A breaker frames, supporting DC24V, AC230V and AC400V control with RS485 communication and remote operation.
Overview
Special-purpose devices completing the range: fee-control prepayment MCCBs for utility metering programs, and internet-connected remote operation modules for retrofit smart control.
Key Features
- Integrated metering + disconnect (ECB)
- Retrofit remote control for MCCBs (DC6)
- Remote management and alarm reporting
- Utility-grade construction
Remote Internet Control Module DC6-250
| Parameter | 250 |
|---|---|
| Rated frame current Inm (A) | 250A |
| Rated operational voltage Ue (V) | DC24V/AC230V/AC400V |
| Length (mm) | 150 |
| Width (mm) | 105 |
| Height (mm) | 72 |
| Mechanical life (operations) maintenance-free | 10000 |
| Mechanical life (operations) maintained | 12000 |
Typical Applications
- Prepaid metering programs
- Smart distribution retrofits
- Remote substations
Frequently Asked Questions
Which breaker frames can use a DC6 module?
The listed compatible frames are 125A, 160A, 250A, 400/630A, 800/1250A and 2000A.
Which control supplies and communication are supported?
The range lists DC24V, AC230V and AC400V control supplies, RS485 communication and mechanical life from 5,000 to 15,000 operations depending on frame.
