Micro Switches (ZHJ)

The DMS series micro switches from ZHJ — general-purpose DMS01 / DMS02 / DMS03 and waterproof IP67 DMS05–DMS11. Compact snap-action construction, 0.1A to 16A ratings, with CQC, CB, UL and ENEC documents matched by model.

General Purpose

Standard Micro Switches

DMS01 / DMS02 / DMS03 — compact snap-action switches for home appliances, instruments and automation equipment.

Micro Switch DMS01 — ZHJ DMS01 micro switch from an authorized distributor in China
DMS01

Micro Switch DMS01

General-purpose 16A micro switch (DMS01): compact, sensitive actuation, 50,000-cycle life, CQC and CB certified for appliances, instruments and automation.

View detailsMicro Switch DMS02 — ZHJ DMS02 micro switch from an authorized distributor in China
DMS02

Micro Switch DMS02

General-purpose 10A micro switch (DMS02): compact, sensitive actuation, 50,000-cycle life, UL and ENEC certified for appliances, instruments and automation.

View detailsMicro Switch DMS03 — ZHJ DMS03 micro switch from an authorized distributor in China
DMS03

Micro Switch DMS03

Compact 3A micro switch (DMS03) with 200,000-cycle mechanical life for low-power precision control in office equipment, appliances and instruments.

View details
IP67 Sealed

Waterproof Micro Switches

DMS05 / DMS06 / DMS07 / DMS08 / DMS09 / DMS11 — sealed against humidity, dust and oil for automotive and outdoor equipment.

Waterproof Micro Switch DMS05 (IP67) — ZHJ DMS05 waterproof micro switch from an authorized distributor in China
DMS05

Waterproof Micro Switch DMS05 (IP67)

IP67 waterproof micro switch (DMS05) rated 10A 250VAC with 1,000,000-cycle mechanical life for automotive, outdoor and wet-environment applications.

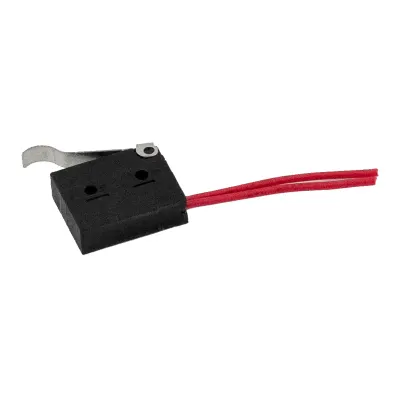

View detailsWaterproof Micro Switch DMS06 (IP67) — ZHJ DMS06 waterproof micro switch from an authorized distributor in China
DMS06

Waterproof Micro Switch DMS06 (IP67)

IP67 waterproof micro switch (DMS06) rated 10A 250VAC with -40°C to +125°C operating range, listed under UL file E303918.

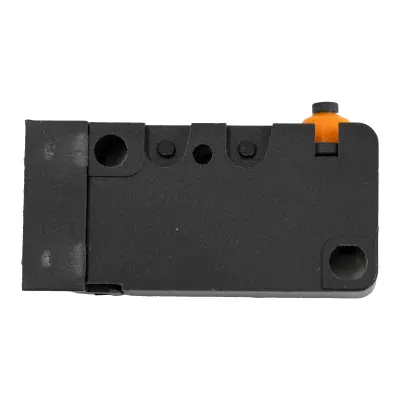

View detailsWaterproof Micro Switch DMS07 (IP67) — ZHJ DMS07 waterproof micro switch from an authorized distributor in China
DMS07

Waterproof Micro Switch DMS07 (IP67)

IP67 waterproof micro switch (DMS07) rated 16A 250VAC — the high-current option in the waterproof range for appliances and outdoor equipment.

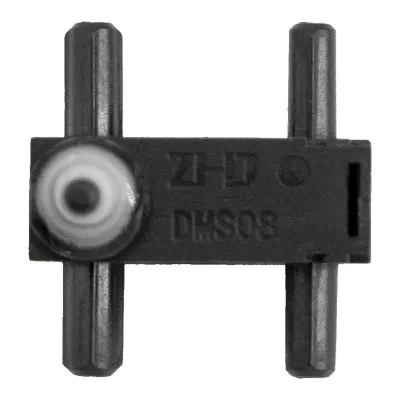

View detailsWaterproof Micro Switch DMS08 (IP67) — ZHJ DMS08 waterproof micro switch from an authorized distributor in China
DMS08

Waterproof Micro Switch DMS08 (IP67)

IP67 waterproof micro switch (DMS08) for low-voltage DC control — 1A at 12/24/36VDC for sensors and signal circuits.

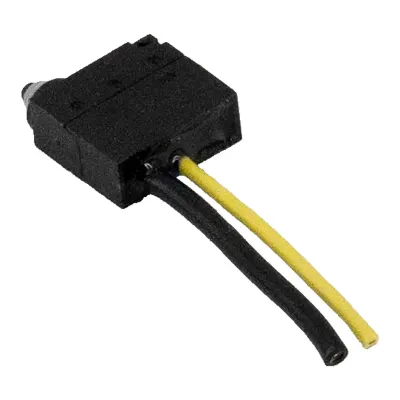

View detailsWaterproof Micro Switch DMS09 (IP67) — ZHJ DMS09 waterproof micro switch from an authorized distributor in China
DMS09

Waterproof Micro Switch DMS09 (IP67)

IP67 waterproof micro switch (DMS09) for 1A DC signal circuits with pre-wired lead options for automotive and outdoor sensors.

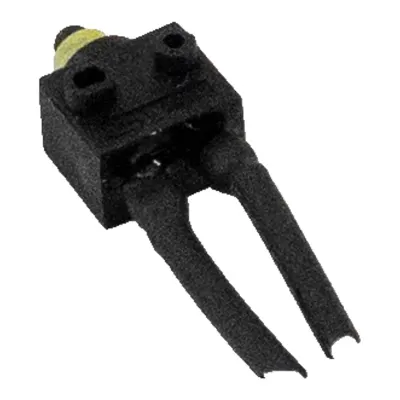

View detailsWaterproof Micro Switch DMS11 (IP67) — ZHJ DMS11 waterproof micro switch from an authorized distributor in China
DMS11

Waterproof Micro Switch DMS11 (IP67)

IP67 waterproof micro switch (DMS11) for 0.1A 12VDC micro-signal switching — the most sensitive option in the waterproof range.

View details
Model Range

DMS Series Overview

Key ratings and certifications by model. Send us your target model for the full selection table and data sheet.

ModelTypeTypical RatingMechanical LifeOperating Temp.Certification
DMS01Standard16A 125/250VAC50,000 ops-25°C ~ +125°CCQC, CB
DMS02Standard10A 125/250VAC50,000 ops-25°C ~ +125°CUL, ENEC
DMS03Standard3A 125/250VAC200,000 ops-25°C ~ +85°C—
DMS05Waterproof IP6710A 250VAC1,000,000 ops-40°C ~ +105°C—
DMS06Waterproof IP6710A 250VAC1,000,000 ops-40°C ~ +125°CUL (E303918)
DMS07Waterproof IP6716A 250VAC1,000,000 ops-40°C ~ +85°C—
DMS08Waterproof IP671A 12/24/36VDC1,000,000 ops-40°C ~ +85°C—
DMS09Waterproof IP671A 12/24/36VDC1,000,000 ops-40°C ~ +85°C—
DMS11Waterproof IP670.1A 12VDC1,000,000 ops-40°C ~ +85°C—

Full technical data on each product page. Ask for the selection table

Production & Quality

Inside the Micro Switch Supply Base

Production and quality-control scenes from our micro-switch supply partner's facility in Yueqing, shared for customer reference.

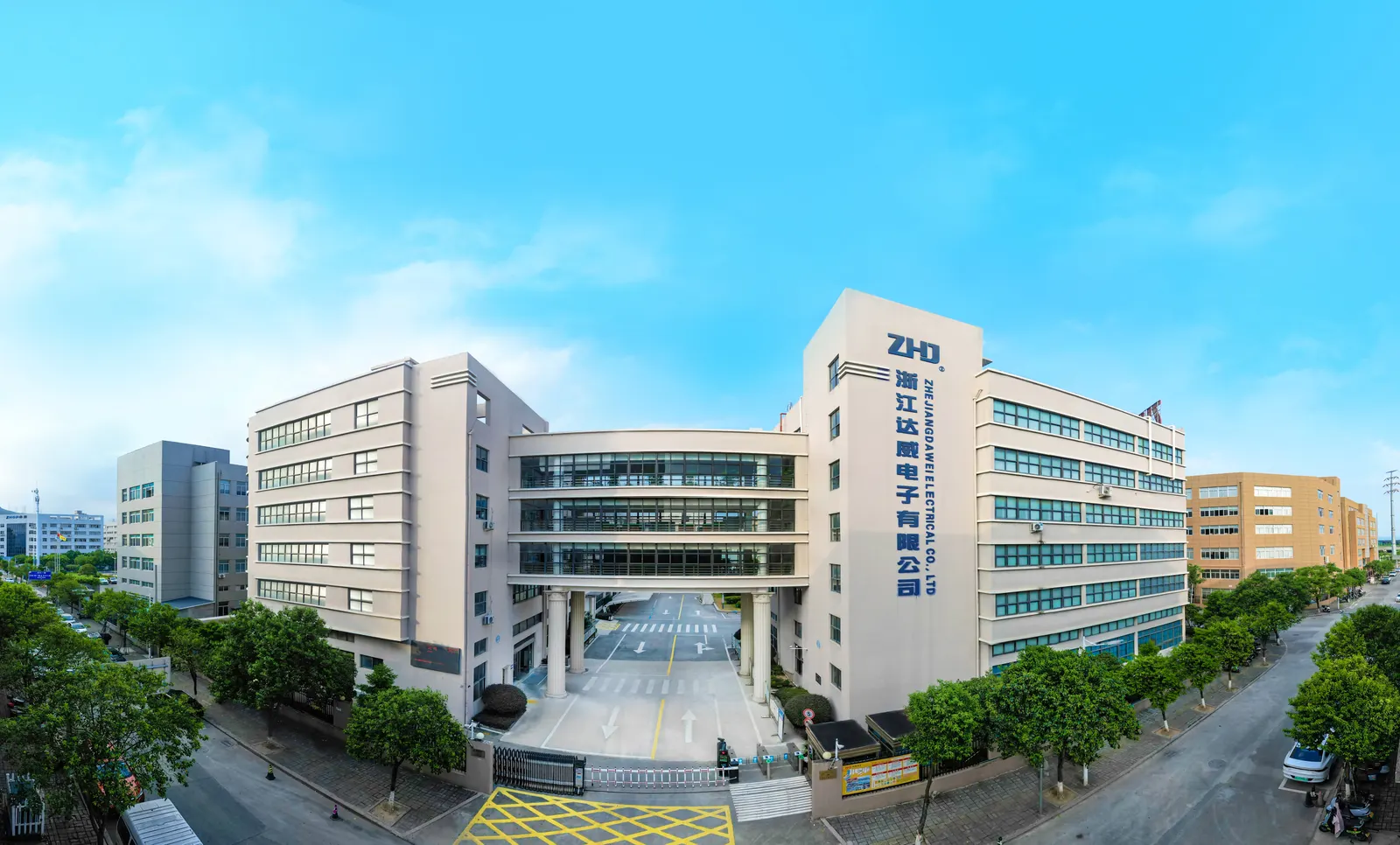

Company facility overview — production facility scene shared by our supply partner
Company facility overview

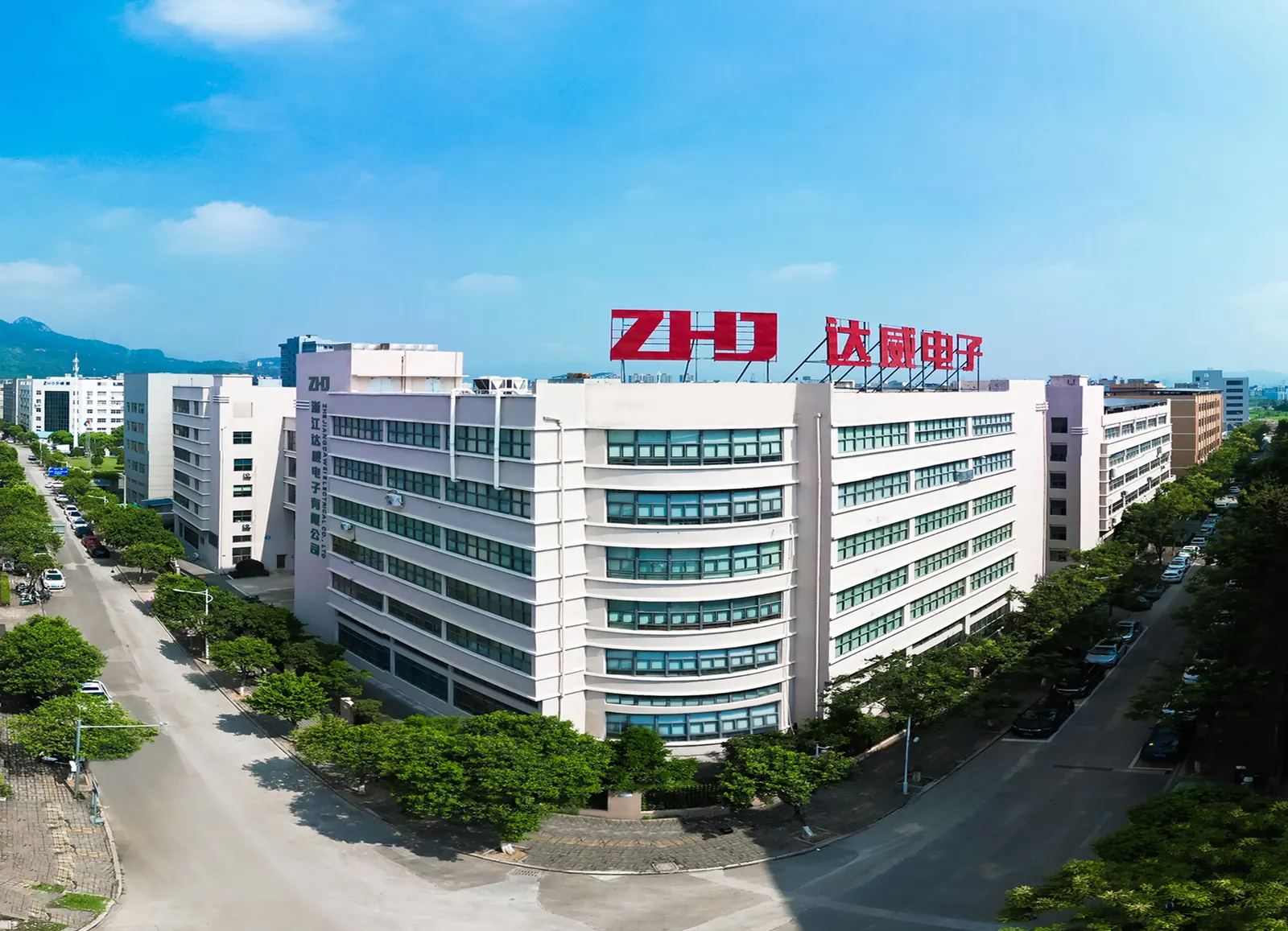

Factory campus aerial view — production facility scene shared by our supply partner
Factory campus aerial view

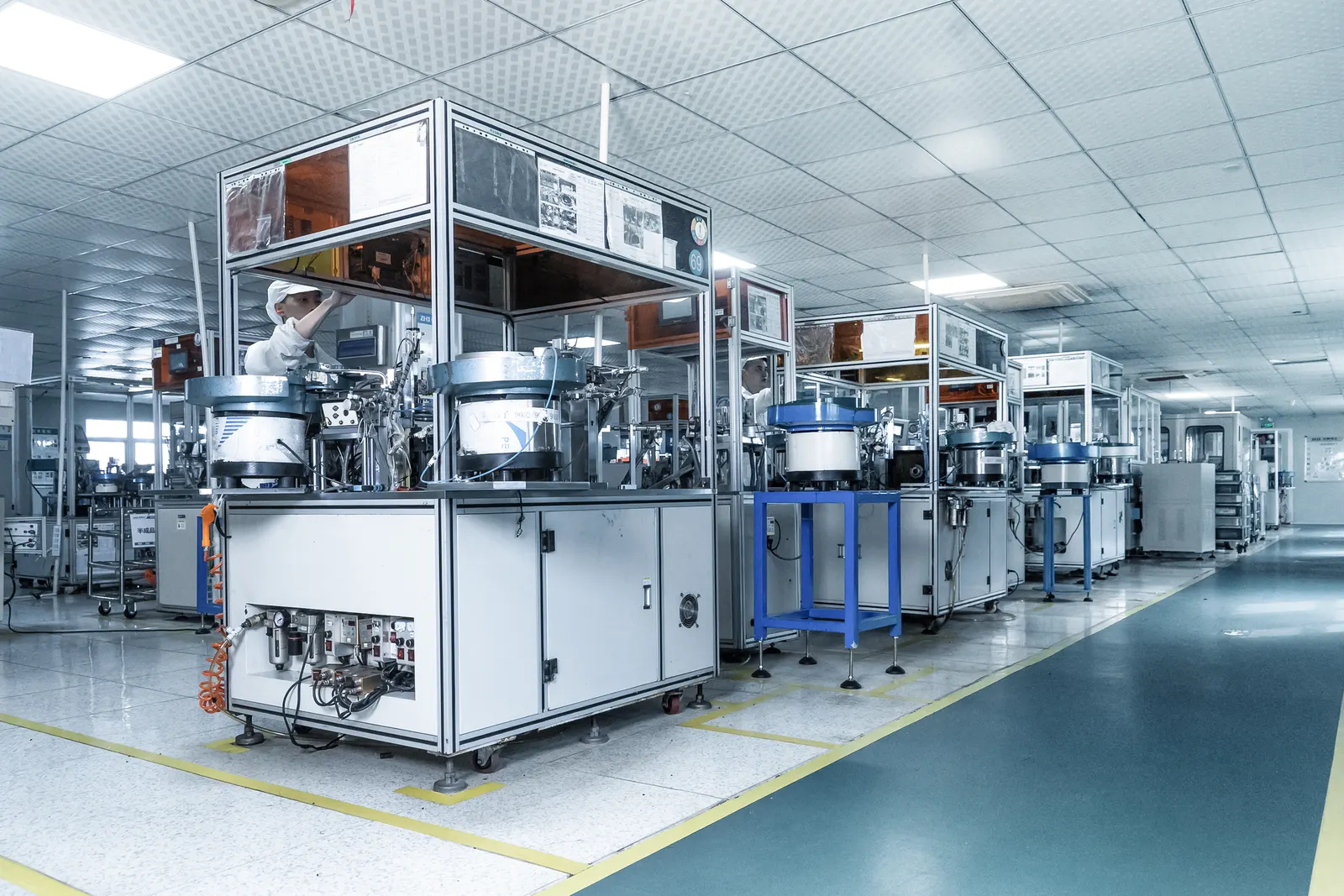

Automated assembly line with vibratory bowl feeders — production facility scene shared by our supply partner
Automated assembly line with vibratory bowl feeders

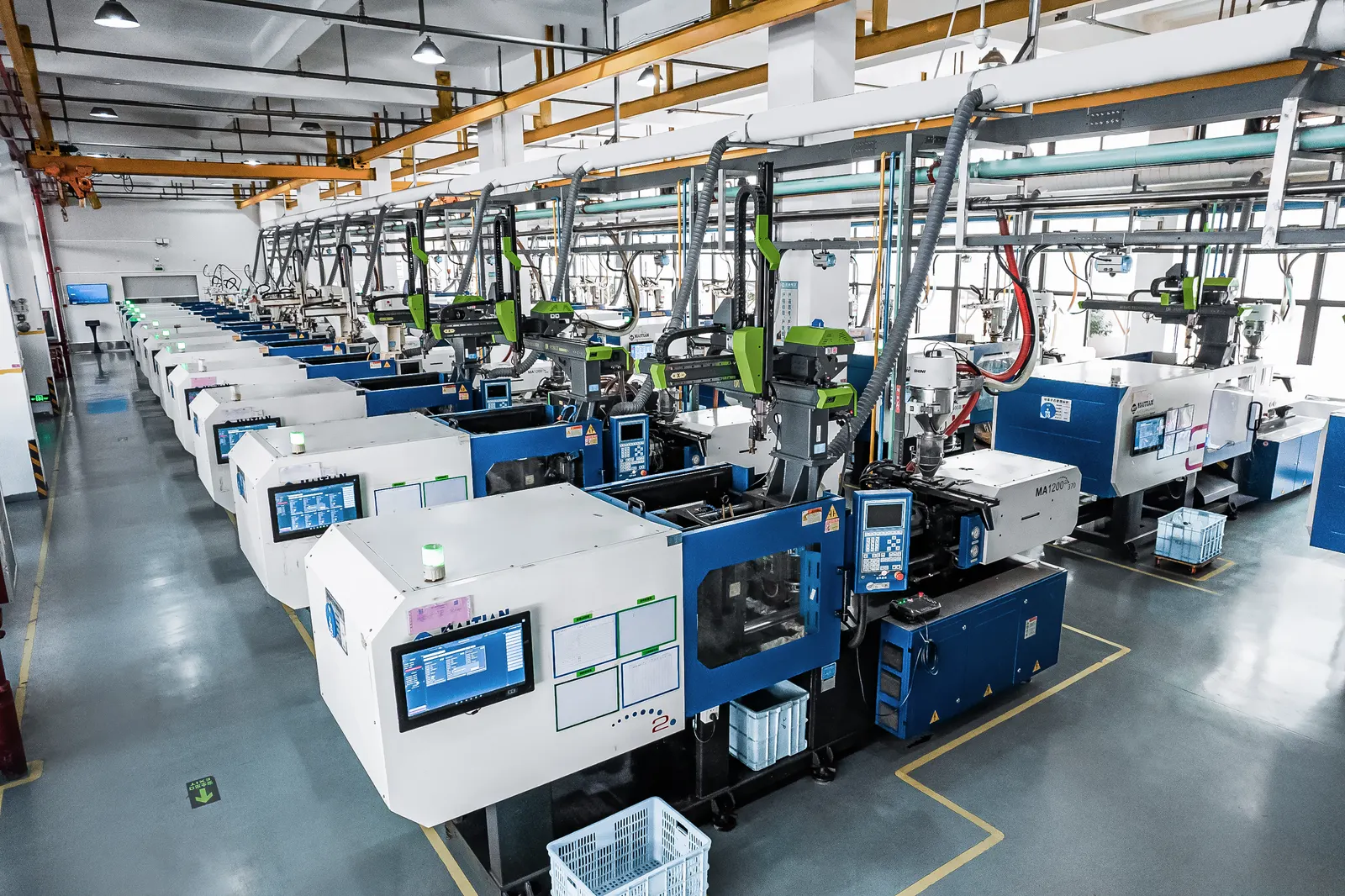

Injection molding machines with robotic part handling — production facility scene shared by our supply partner
Injection molding machines with robotic part handling
Metal stamping workshop — production facility scene shared by our supply partner
Metal stamping workshop

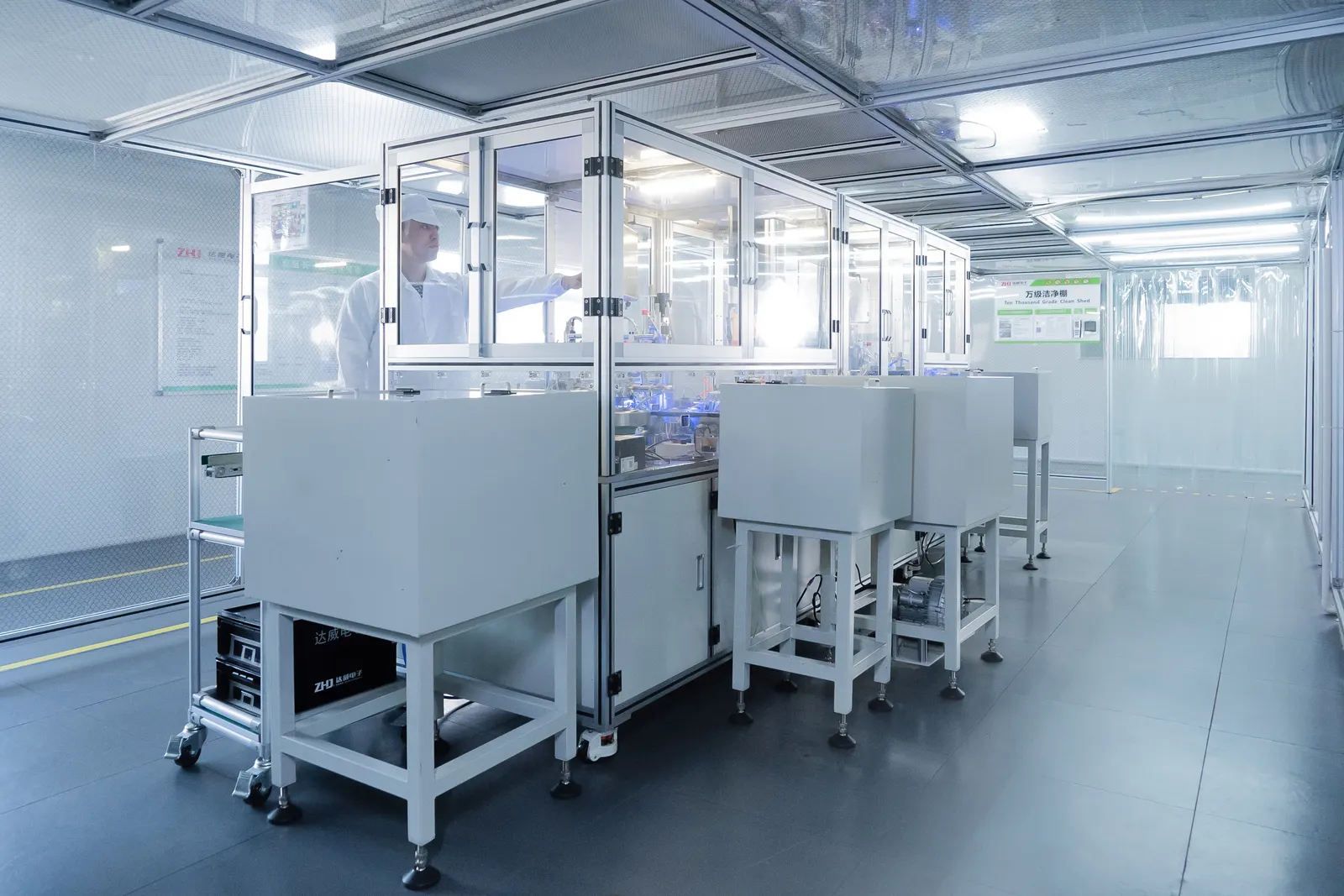

Clean booth assembly and testing station — production facility scene shared by our supply partner
Clean booth assembly and testing station

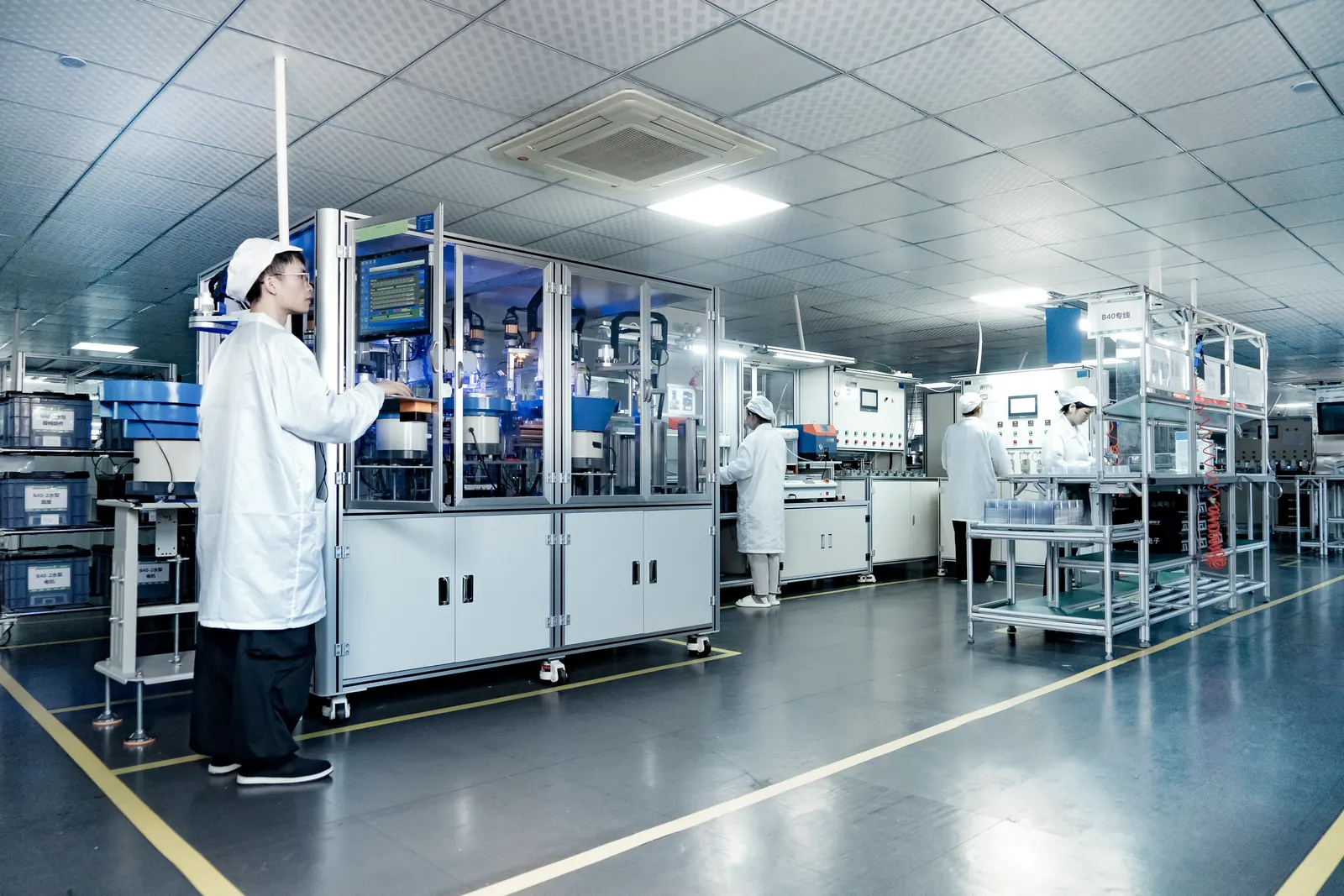

B40 automatic production line — production facility scene shared by our supply partner
B40 automatic production line

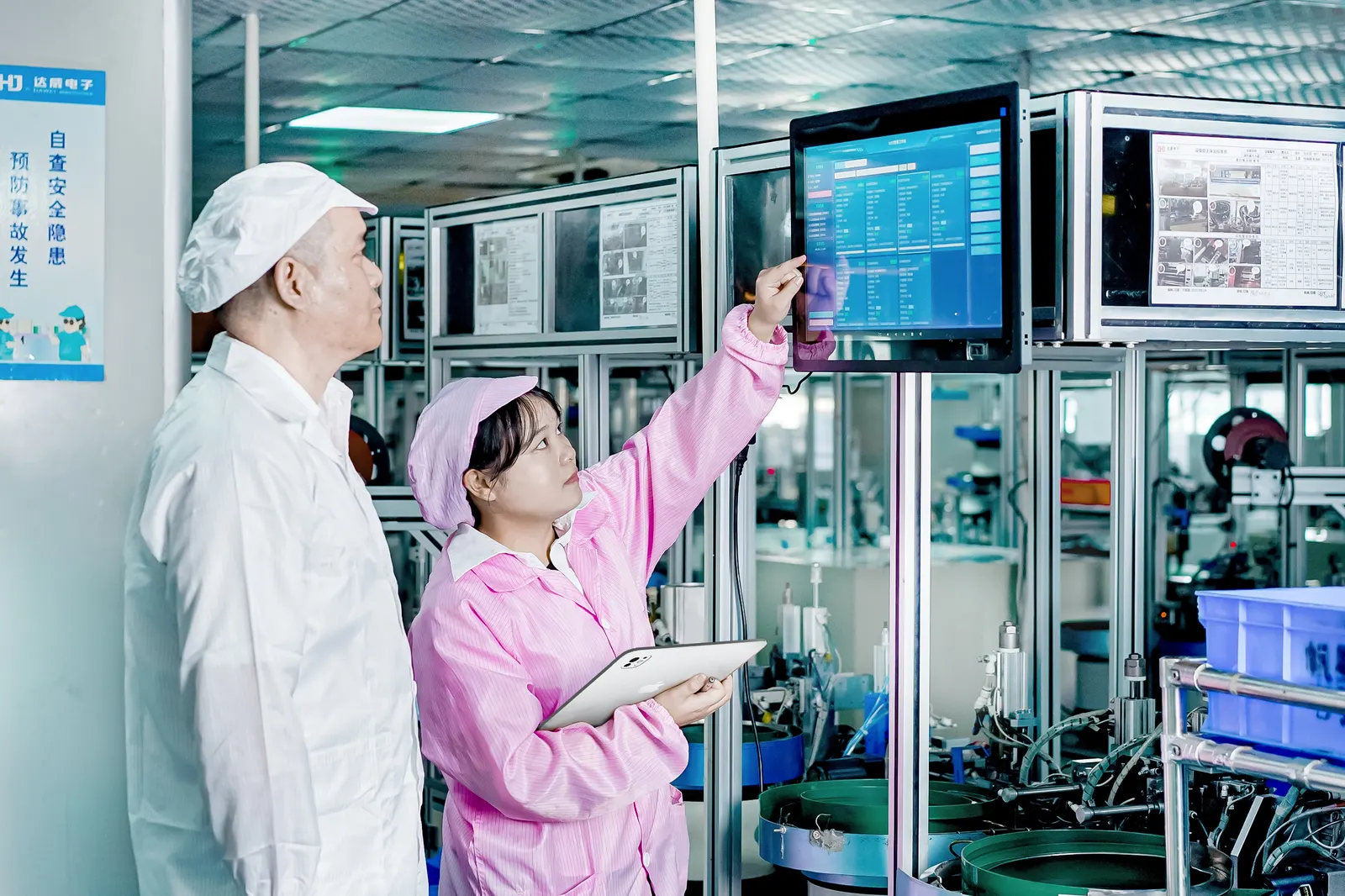

Production monitoring with 5S visual management — production facility scene shared by our supply partner
Production monitoring with 5S visual management

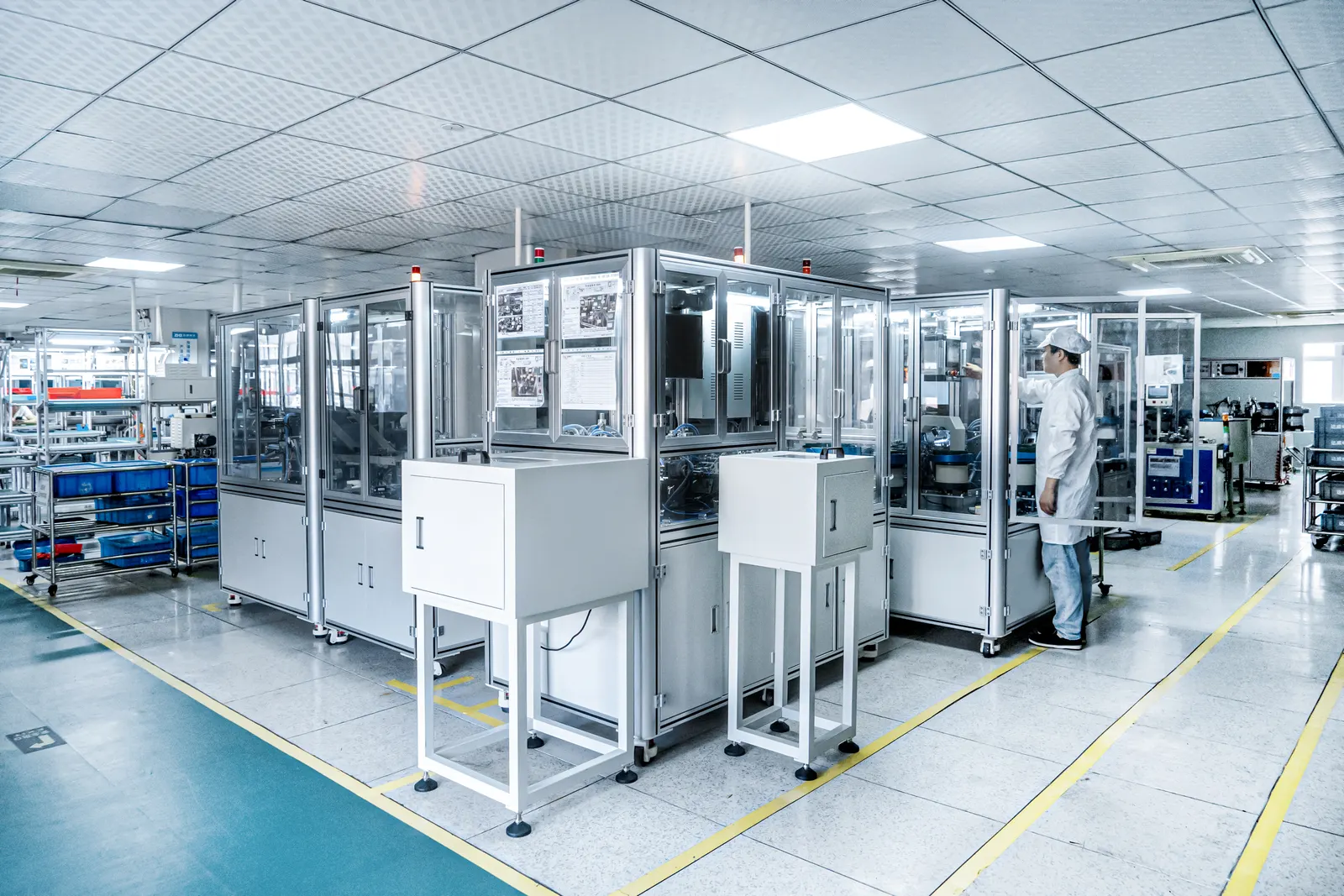

Automated assembly and test stations — production facility scene shared by our supply partner
Automated assembly and test stations
Burn-in aging test cabinets — production facility scene shared by our supply partner
Burn-in aging test cabinets

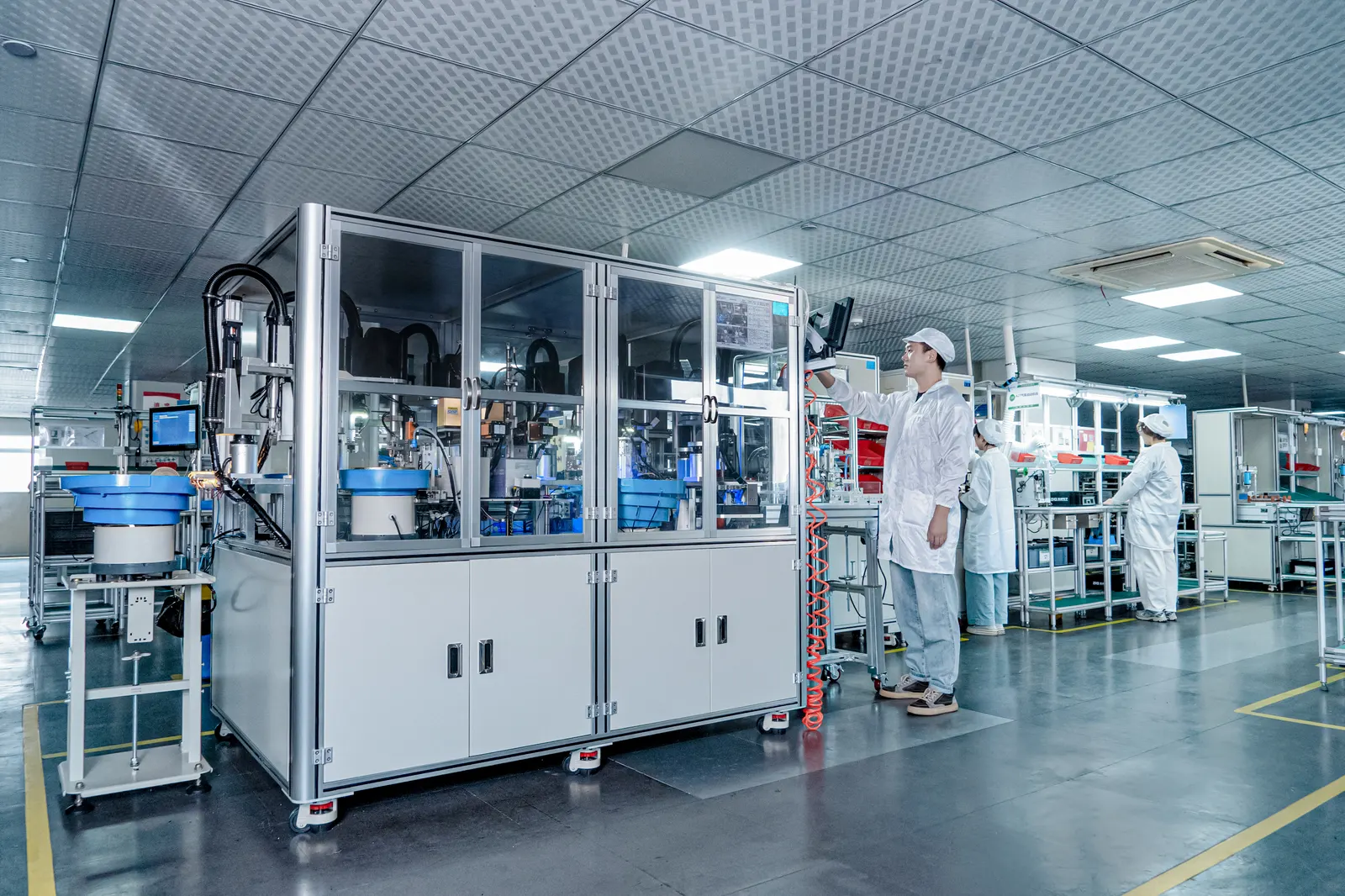

Precision air supply equipment station — production facility scene shared by our supply partner
Precision air supply equipment station
Electroplating hardness testing station — production facility scene shared by our supply partner
Electroplating hardness testing station

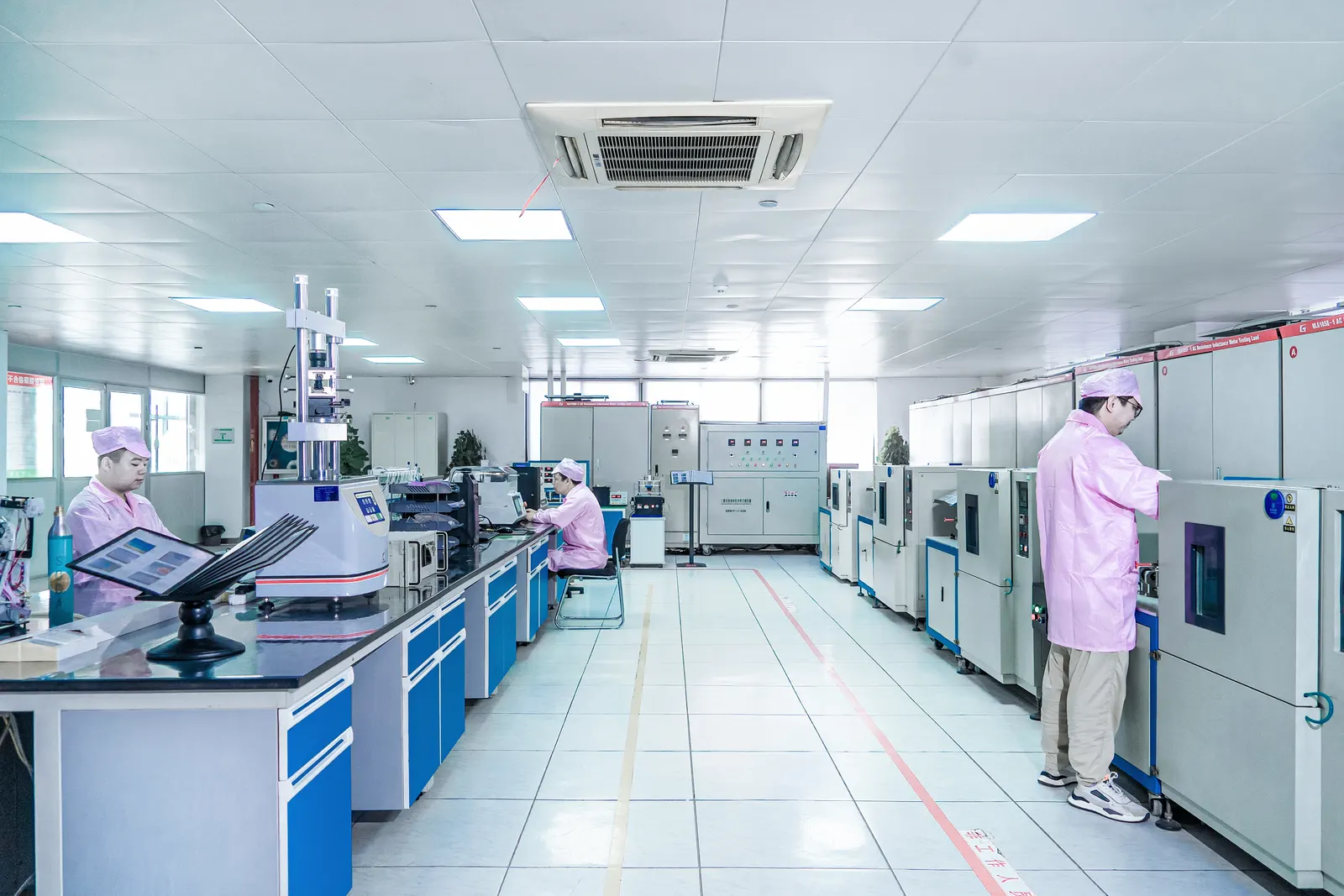

Quality control laboratory with test chambers — production facility scene shared by our supply partner
Quality control laboratory with test chambers

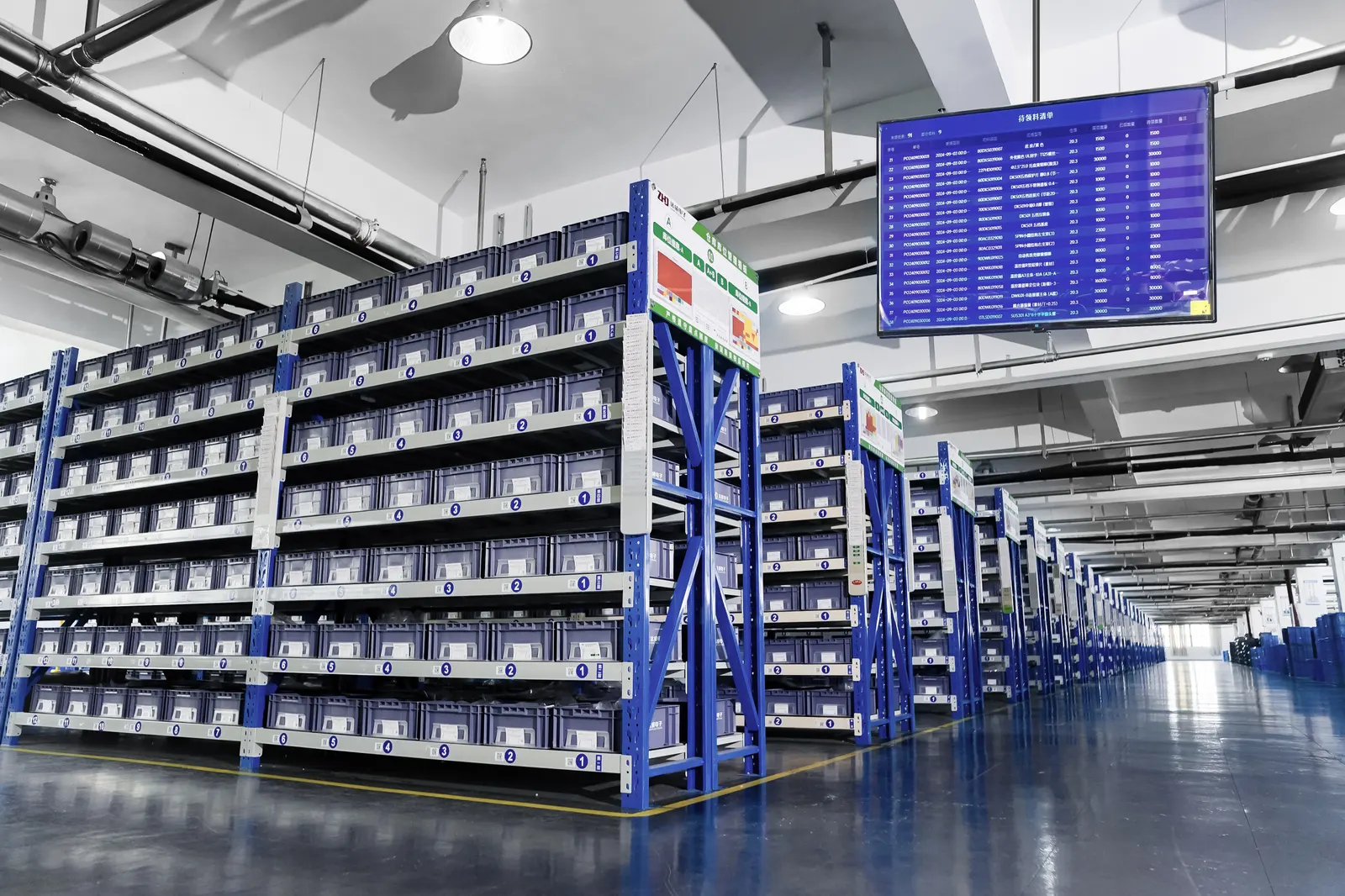

Parts warehouse with numbered storage bays — production facility scene shared by our supply partner
Parts warehouse with numbered storage bays

Factory visits and quality documentation can be arranged per project. Ask about inspection arrangements

Certificates & Documentation

Micro Switch Line Documents

Certificates held by the ZHJ micro-switch manufacturing partner (Zhejiang Dawei Electronic Co., Ltd.). Holder, model scope and validity apply exactly as stated on each document — check the coverage before relying on any file.

Product Certificates

Manufacturer System Certificates

These documents cover the ZHJ micro-switch line only. For NY circuit-breaker documentation, request a model-specific check on the documentation page.

Why ZHJ Micro Switches

  • Authorized distributor channel for ZHJ micro switches
  • Cross-reference support for Omron, Honeywell, Cherry, Zippy and more
  • Multiple actuators, terminals and gold-plating options per model
  • Quotation and availability prepared for volume orders

Typical Specifications

  • Contact ratings: 0.1A to 16A, up to 250VAC / 36VDC
  • Mechanical life: 50,000 to 1,000,000 operations
  • Protection: standard and IEC IP67 sealed
  • Certifications: CQC, CB, UL, ENEC matched by model — see Documents section

Send us your target model or requirements — we will confirm available data sheets, pricing and lead time.

Need a quotation?

Tell us your model, quantity and destination. Our team will reply with the available specifications and lead-time information.
