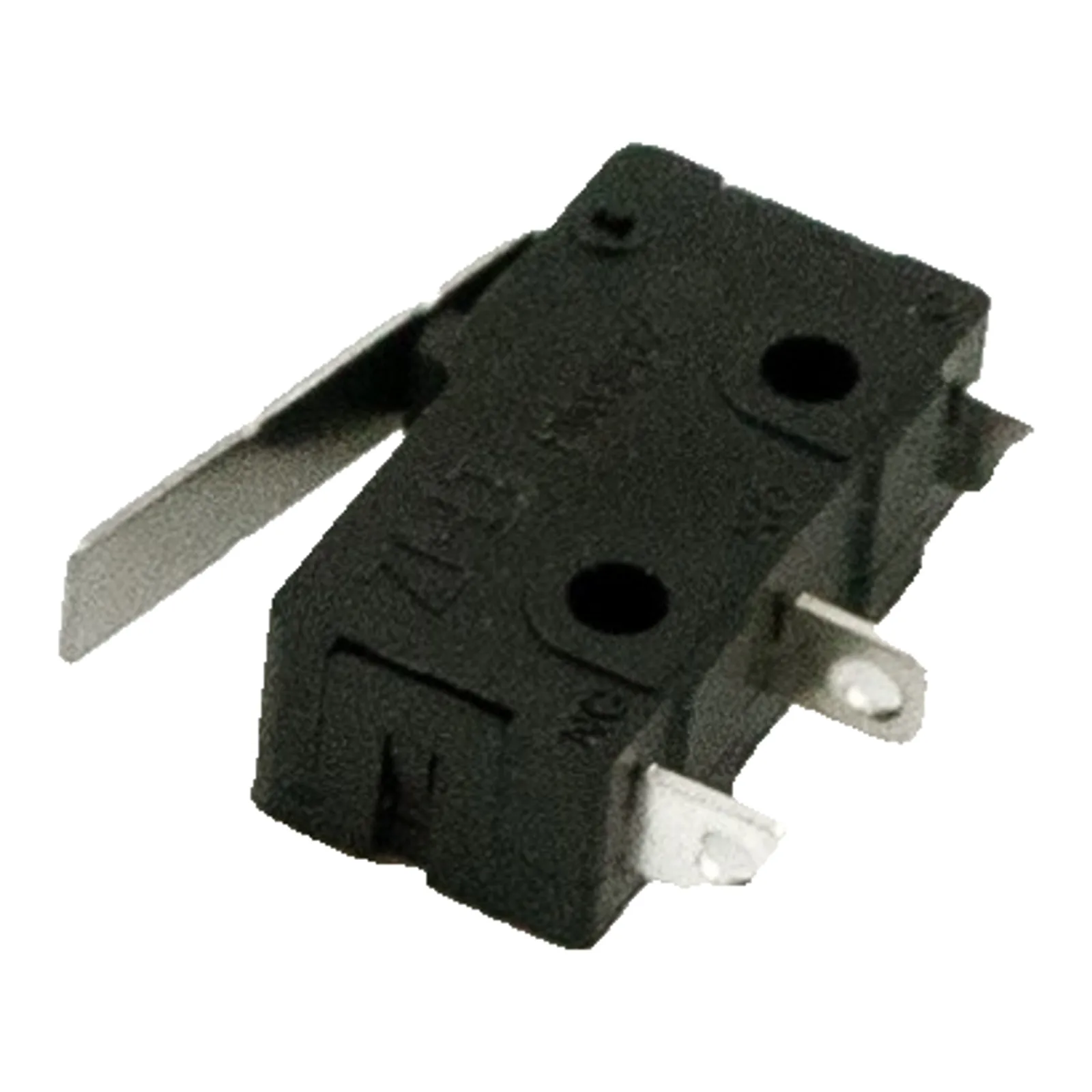

Micro Switch DMS02
General-purpose 10A micro switch (DMS02): compact, sensitive actuation, 50,000-cycle life, UL and ENEC certified for appliances, instruments and automation.
Order Support
- Typical production lead time: 20 working days
- Free samples — send us your express shipping account
- Technical documents checked for the requested model
- Pre-shipment inspection options can be agreed before ordering
- OEM and private-label requirements are reviewed case by case
General-purpose 10A micro switch (DMS02): compact, sensitive actuation, 50,000-cycle life, UL and ENEC certified for appliances, instruments and automation.
Overview
The DMS02 shares the DMS01 footprint with a 10(3)A 125/250V rating, so buyers can standardize one mounting pattern across 10A and 16A positions. Life ratings hold at 50,000 operations with the same -25°C to +125°C window and UL (E303918) plus ENEC approvals. Choose it when the application needs the full actuator and terminal range but not the 16A contact load.
Key Features
- 10(3)A 125/250VAC contact rating
- Same footprint as the 16A DMS01
- 50,000-operation electrical and mechanical life
- UL (E303918) and ENEC approvals

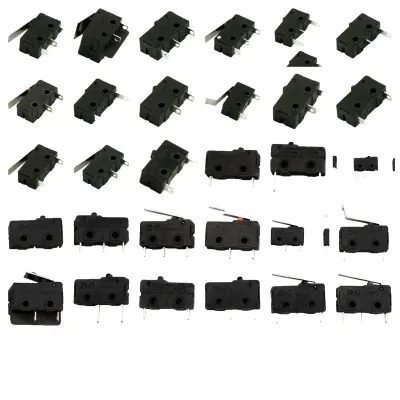

- Multiple actuator shapes and terminals
- Gold-plated terminals optional
Technical Specifications
| Rated Values | 10(3)A 125/250V T125µ; 10A 125/250V T125µ; 5(5)A 125/250V T125µ; 5A 125/250VAC T125µ; 1A 36VDC T125µ |
| Contact Resistance | ≤50 mΩ (single switch, without wiring harness) |
| Insulation Resistance | ≥100 MΩ 500V DC |
| Withstanding Voltage | 1000V AC 1min between terminals; 1500V AC 1min terminal-to-actuator |
| Electrical Life | 50,000 operations |
| Mechanical Life | 50,000 operations |
| Operating Temperature | -25°C to +125°C |
| Vibration Resistance | Frequency 55Hz, amplitude 1.5mm, duration 2 hours |
| Shock Resistance | Endurance 1000 m/s² (approx. 100G) max; malfunction 300 m/s² (approx. 30G) max |
| Electric Shock Protection Class | Class I |
| Ingress Protection (IP) Rating | — |
| Product Certification | UL (E303918), ENEC |

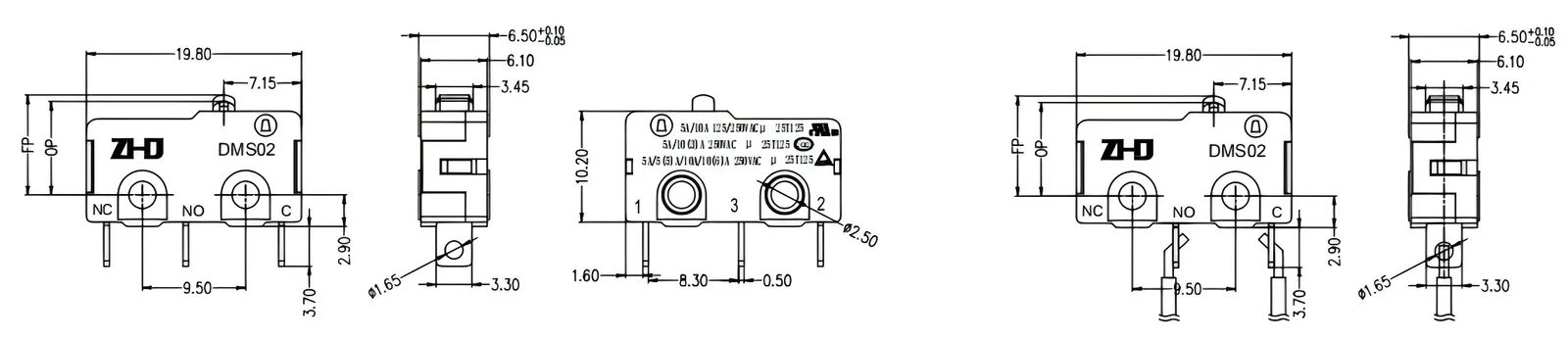

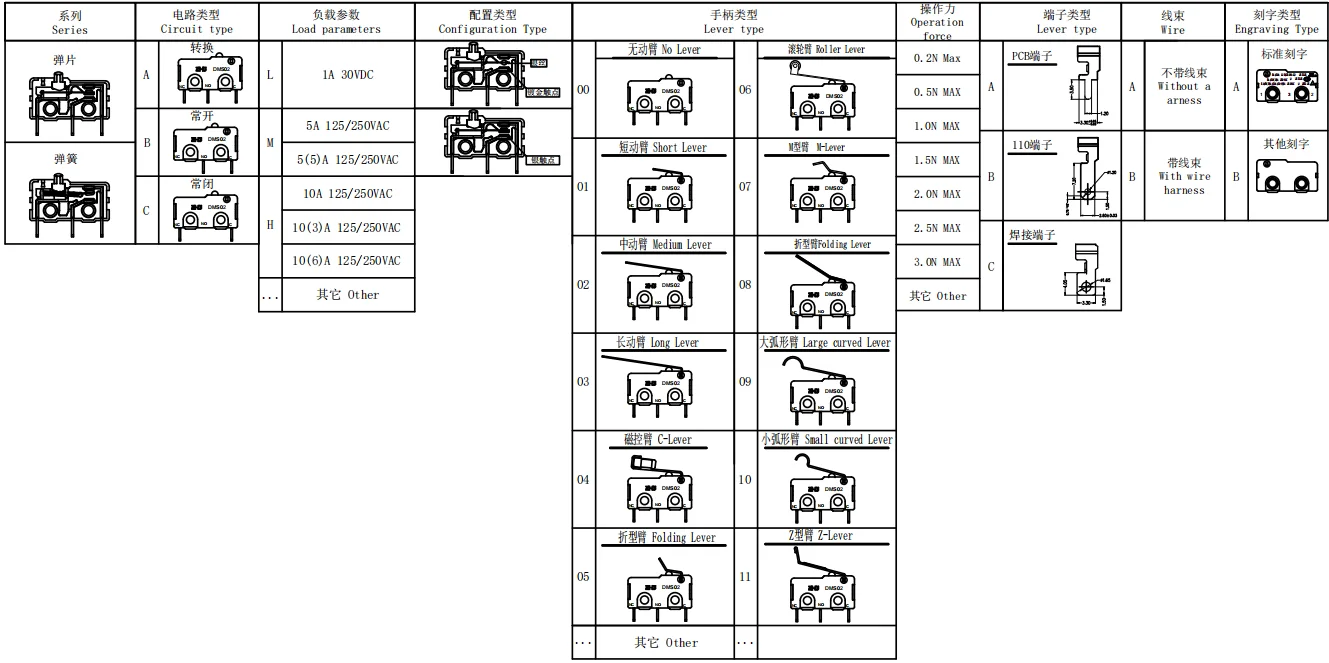

Selection Table & Outline Drawing
Documents & Certificates
Certificates are held by the manufacturing partner of the ZHJ micro-switch line. Holder, model scope and validity apply as stated on each document.
Typical Applications
- Office and commercial equipment
- Automobiles
- Vending machines
- Refrigerators and ice makers
- Sanitary ware and water heaters
- Air conditioners
- Outdoor equipment and instruments
Frequently Asked Questions
What is the difference between DMS01 and DMS02?
The DMS02 is rated 10A while the DMS01 is rated 16A. Both share the same compact general-purpose construction, actuator range and certification scope.
Which actuator styles are available for DMS02?
Multiple actuator shapes are available. Confirm the exact variant from the selection table or send your reference drawing.
What is the MOQ for DMS02?
There is no fixed MOQ — it usually follows your requested quantity. Contact us with your target model list for a quotation.
