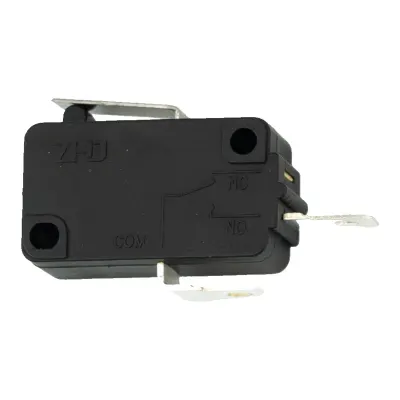

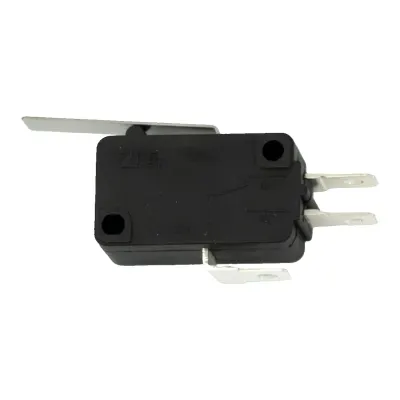

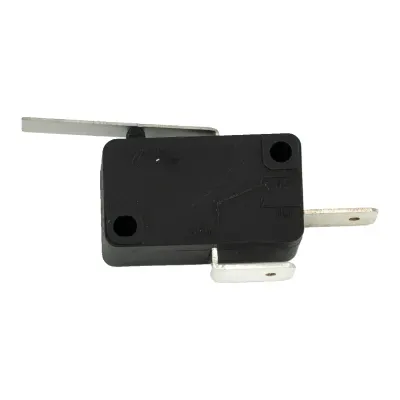

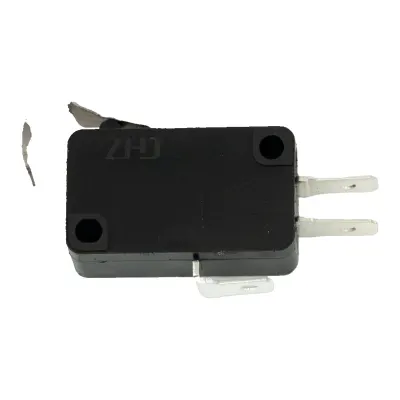

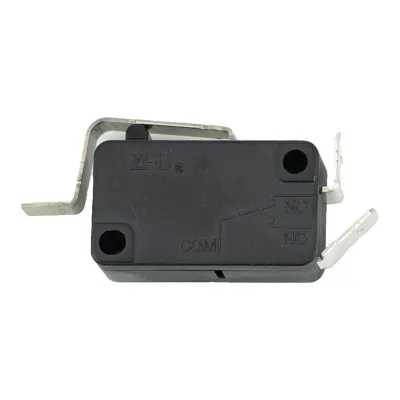

Overview
The DMS01 is the 16A workhorse of the general-purpose ZHJ range. It carries the full 16(4)A at 125/250VAC while covering lighter loads down to 1A 36VDC, with an operating window of -25°C to +125°C and a 50,000-operation electrical and mechanical life. CQC and CB (IEC 61058-1) approvals support appliance, vending and instrumentation applications, and gold-plated terminals are an option for low-level signal loads.
Key Features
- 16(4)A 125/250VAC contact rating
- 50,000-operation electrical and mechanical life
- CQC and CB (IEC 61058-1) approvals

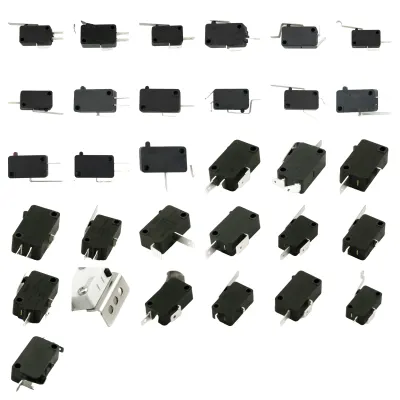

- Multiple actuator shapes
- Complete range of terminal configurations
- Gold-plated terminals optional
Technical Specifications
| Rated Values | 16(4)A 125/250VAC T125µ; 16A 125/250VAC T125µ; 10(4)A 125/250VAC T125µ; 10A 125/250VAC T125µ; 1A 36VDC T125µ |
| Contact Resistance | ≤50 mΩ (single switch, without wiring harness) |
| Insulation Resistance | ≥100 MΩ 500V DC |
| Withstanding Voltage | 1500V AC 1min between terminals; 3000V AC 1min terminal-to-actuator |
| Electrical Life | 50,000 operations |
| Mechanical Life | 50,000 operations |
| Operating Temperature | -25°C to +125°C |
| Vibration Resistance | Frequency 55Hz, amplitude 1.5mm, duration 2 hours |
| Shock Resistance | Endurance 1000 m/s² (approx. 100G) max; malfunction 300 m/s² (approx. 30G) max |
| Electric Shock Protection Class | Class I |
| Ingress Protection (IP) Rating | — |
| Product Certification | CQC, CB (IEC 61058-1) |

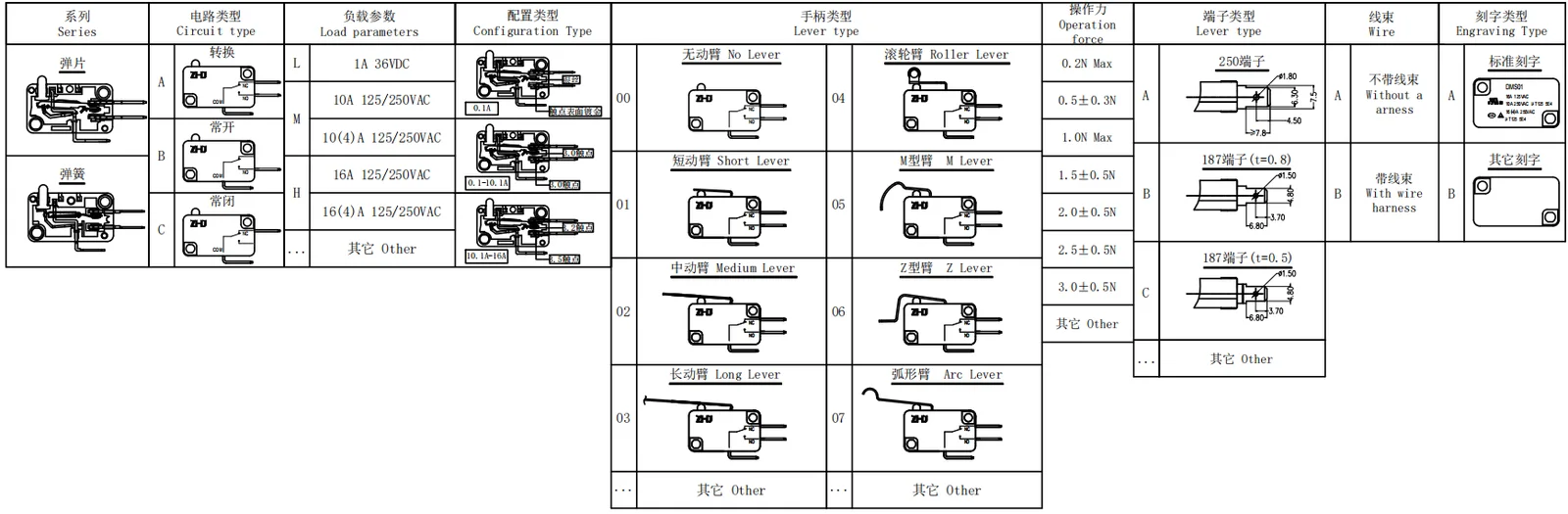

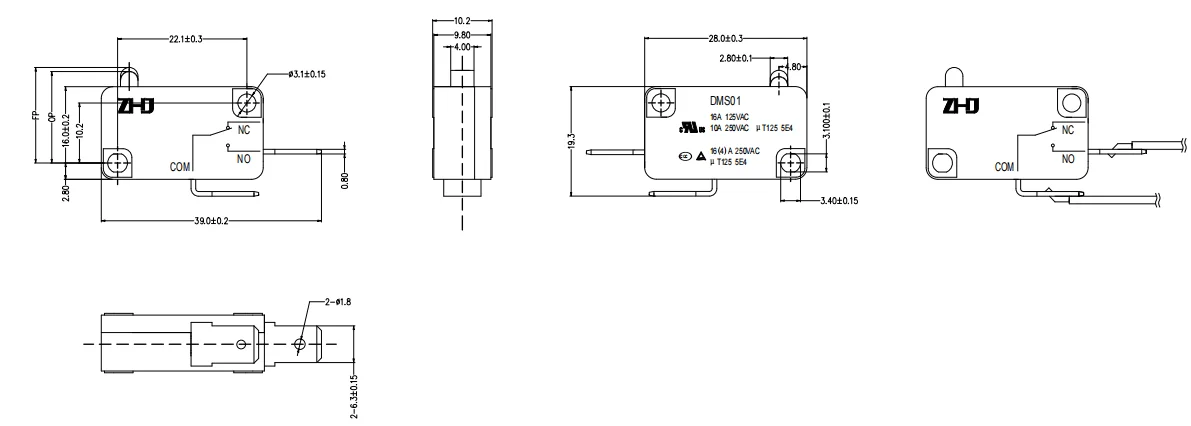

Selection Table & Outline Drawing
Documents & Certificates
- CQC certificate — DMS01 series (valid until 2026-11-18) (PDF)
- CB test certificate — DMS01, DMS01-F, DMS01-G (IEC 61058-1) (PDF)
Certificates are held by the manufacturing partner of the ZHJ micro-switch line. Holder, model scope and validity apply as stated on each document.
Typical Applications
- Office and commercial equipment
- Automobiles
- Vending machines
- Refrigerators and ice makers
- Sanitary ware and water heaters
- Air conditioners
- Outdoor equipment and instruments
